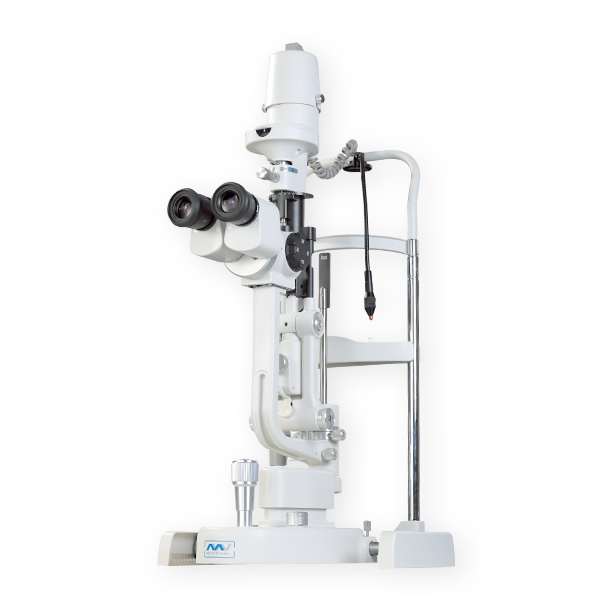

Ophthalmic / Slit Lamp Microscope S290

S290

Slit Lamp Microscope

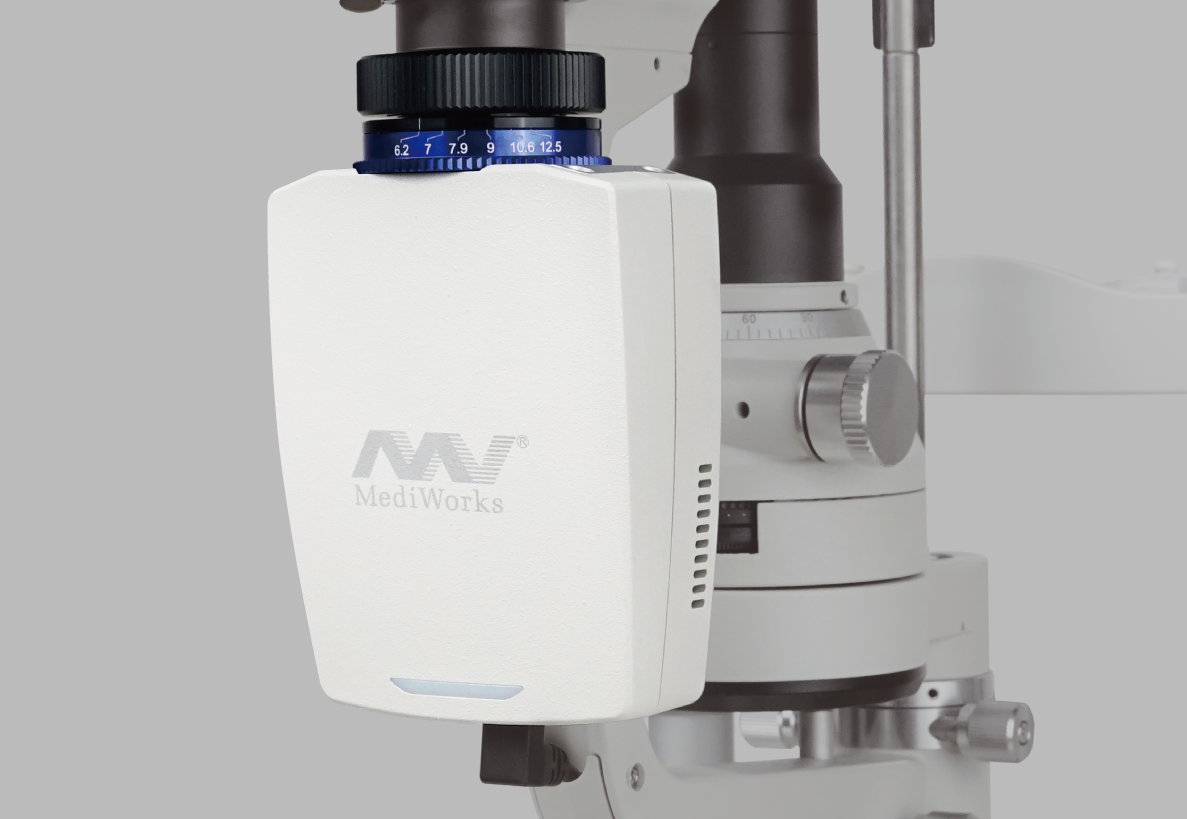

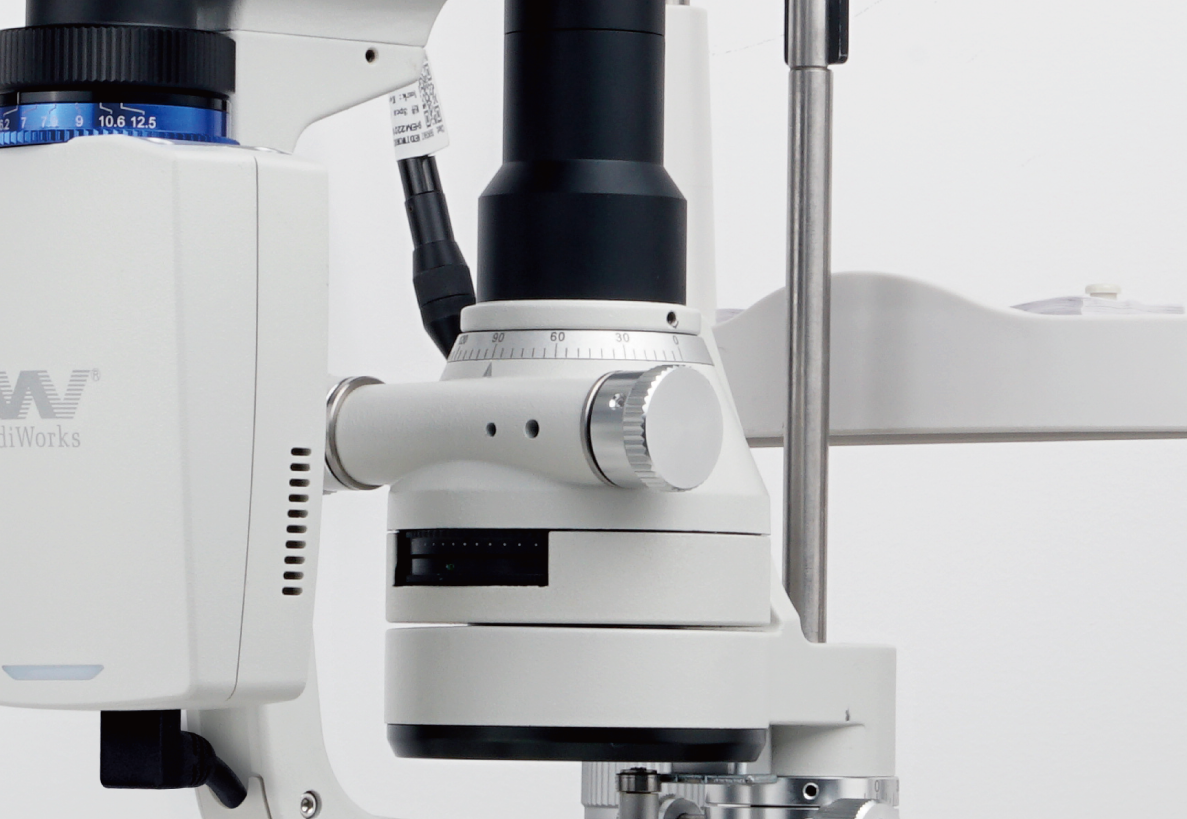

Simple Design + Simple Operation

The design was inspired from the shape of firefly. The smart design largely saves space for clinicians compared other bulky camera systems.We have preset many camera parameters so the user does not need to adjust settings before using the device. The user can operate the machine immediately once the installation has been finished. The device has the following automatic functions for photo shooting and processing when equipped with our Mediview software:

Wide Dynamic Range
Auto Exposure
Auto Gain
Auto White Balance
Auto OD/OS Indicator


Slit Lamp Microscope S290  官网版本-09.png
Slit Lamp Microscope S290  官网版本-10.png

High Sensitivity

The slit is still clear and sharp under weak light.

Slit Lamp Microscope S290  官网版本-11.png

Wide Dynamic Range

Iris and sclera images are simultaneously clearly presented with more realistic and evenly distributed color.

Slit Lamp Microscope S290  官网版本-12.png

Lens

Slit Lamp Microscope S290  官网版本-13.png

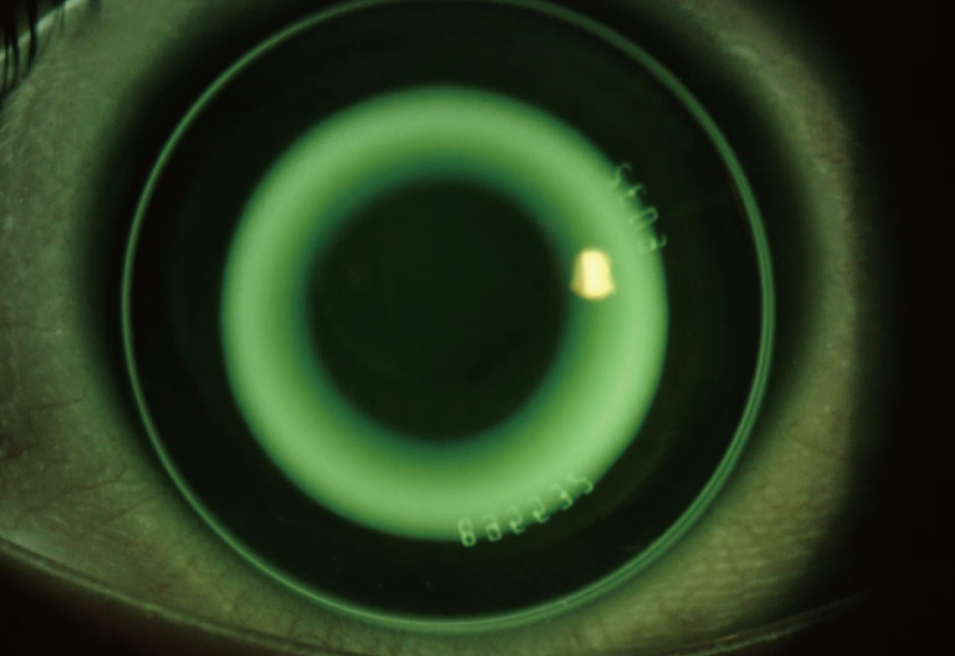

Orthokeratology Lens Fitting

Slit Lamp Microscope S290  官网版本-14.png

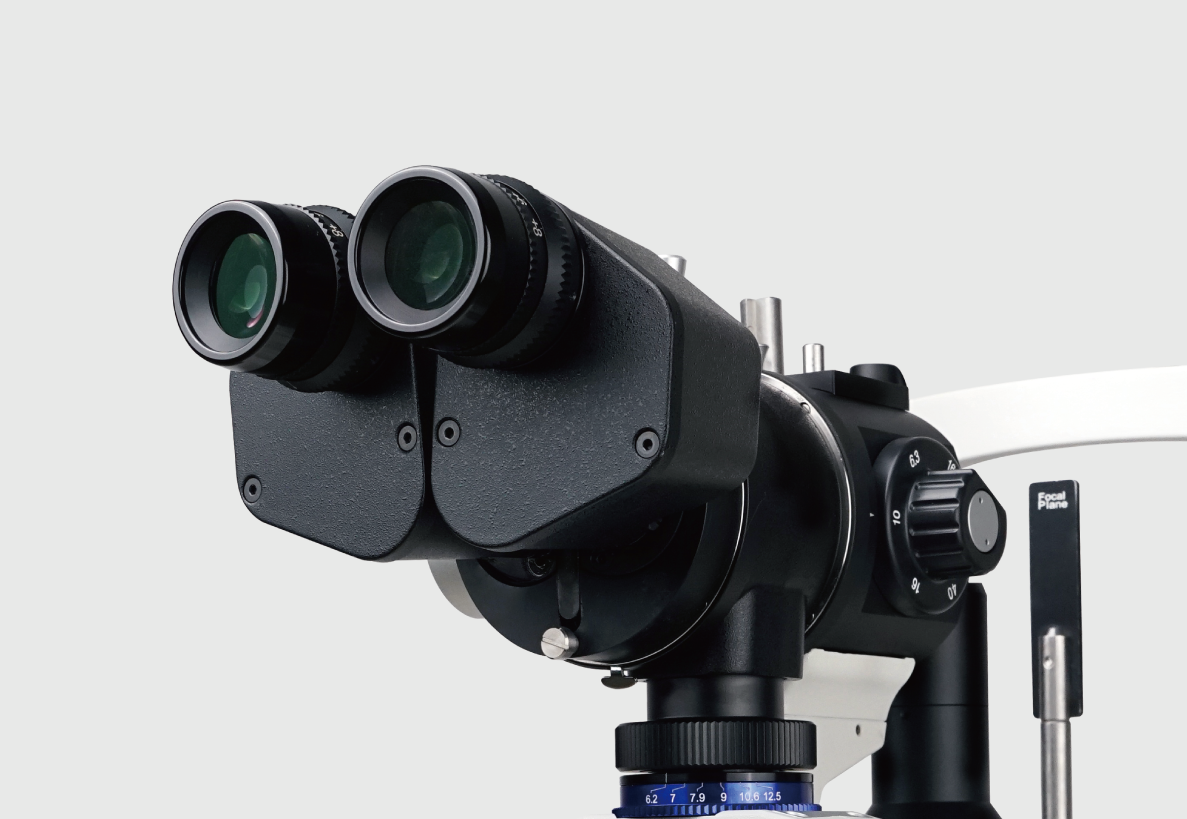

HD Optical System

Optical resolution is up to 2700·N lp/mm (200 lp/mm), providing more details of the pathologies.

Slit Lamp Microscope S290  官网版本-15.png

LED Illumination

The light of MediWorks LED lamp is very similar to halogen lamp, which conforms to the operating habit of doctors. The LED lamp MediWorks applied has a low color temperature and high illumination intensity, making view of retina without glare-colors much more vivid and view of cornea with nerves pop out better. The LED lamp has a longer life span and consumes less energy.

Slit Lamp Microscope S290  官网版本-16.png

Built-in Yellow Filter

Increase positive rate of early corneal epithelial staining Built-in yellow filter along with cobalt-blue filter increases the contrast of Sodium Fluorescein Staining image.

Slit Lamp Microscope S290  官网版本-18.png
Slit Lamp Microscope S290  官网版本-17.png




Slit Lamp Microscope S290 20230725-09.png

Software Features

Slit Lamp Microscope S290  官网版本-20.png

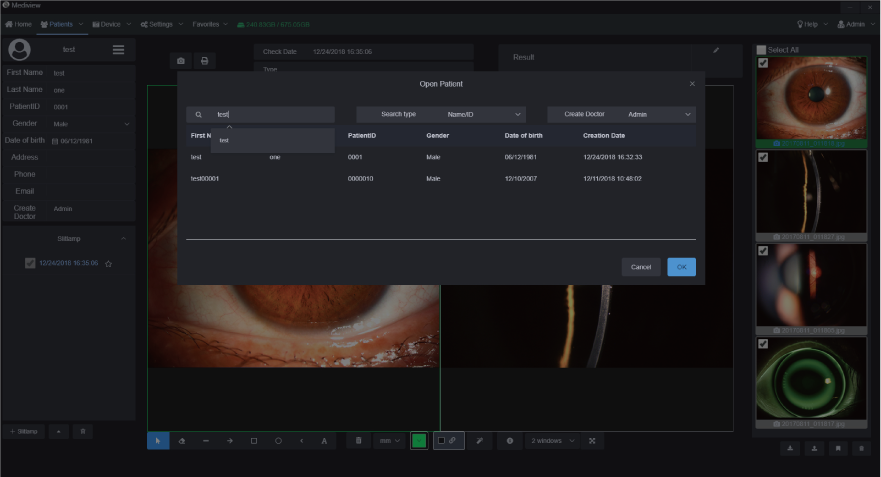

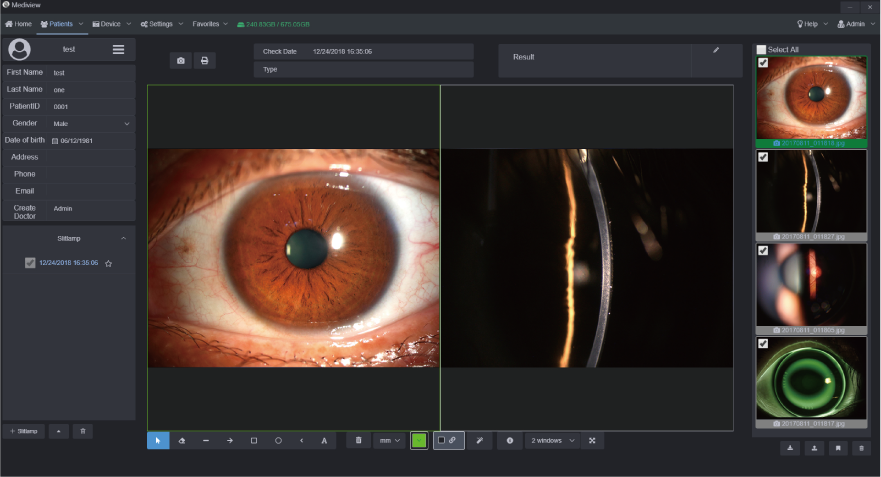

Convenient Patient Management

The patient management system enables clinicians to build and edit patient record,search information by inputting keywords.Clinicians can easily record symptoms and manage the data all the time. The software supports DICOM which makes the images captured by Firefly be easily integrated into hospital's medical system.

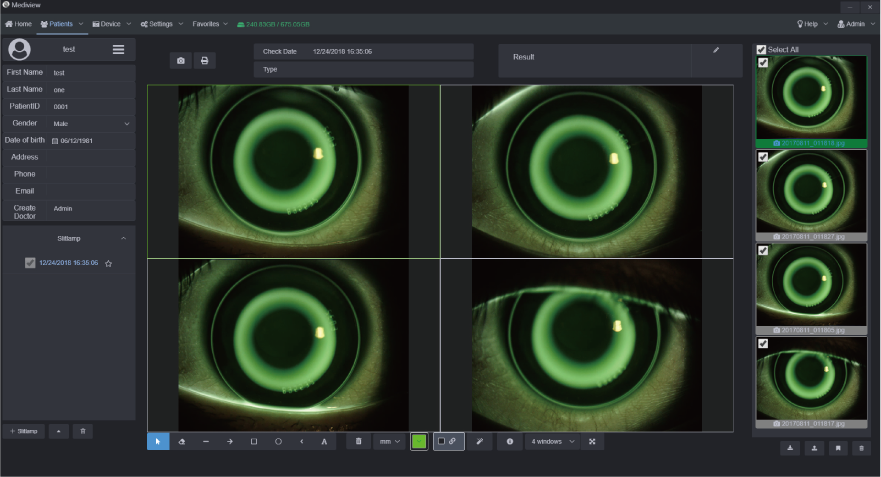

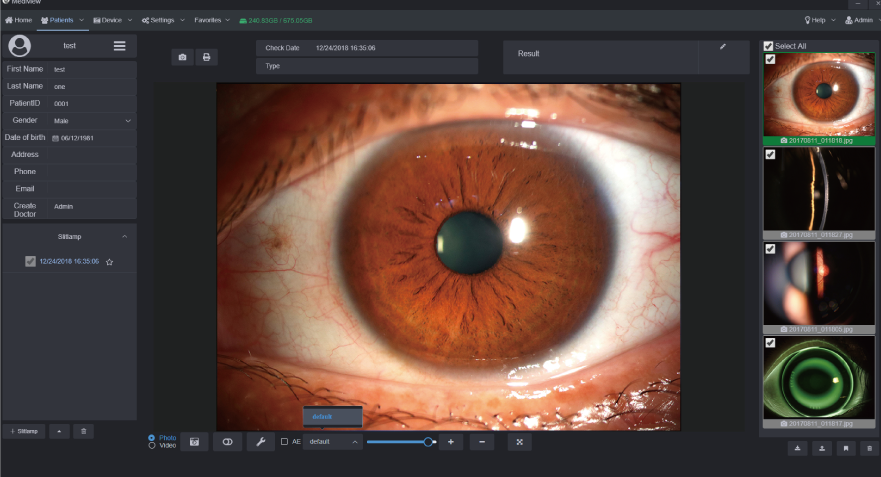

Functional Image Analysis

Clinicians can measure the pathology area with our powerful software tools and change the contrast and brightness of the images. Clinicians can also compare several images at one time to analyze the symptoms and pathology.

Slit Lamp Microscope S290  官网版本-21.png
Slit Lamp Microscope S290  官网版本-22.png

Orthokeratology Lens Fitting Assistance

The optometrists can capture and record high resolution fluorescein images of lens fitting and real-time video without a recording time limit. By comparing the different lens fitting effects, the optometrist can show and educate patients which lens is most suitable for them.

Customized Auto Exposure Value Setting

Clinicians can customize auto exposure values according to the image demand and save as templates for future capturing purpose.
Also, the printing report can be customized according to clinician's needs.


Slit Lamp Microscope S290  官网版本-23.png
Slit Lamp Microscope S290  官网版本-24.png

Slit Lamp Microscope S290  官网版本-25.png

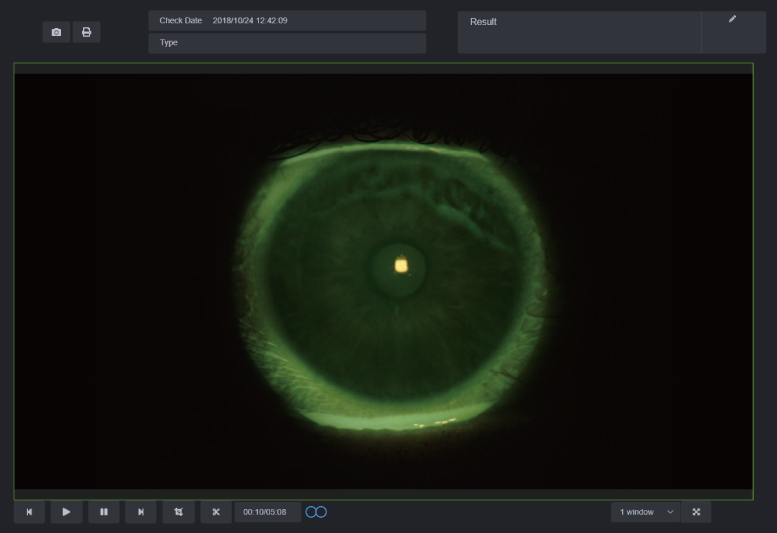

Tear Film Breakup Time

High-performance digital module, doctors can get the tear film Breakup time and judge the stability of it by high-resolution video recording.

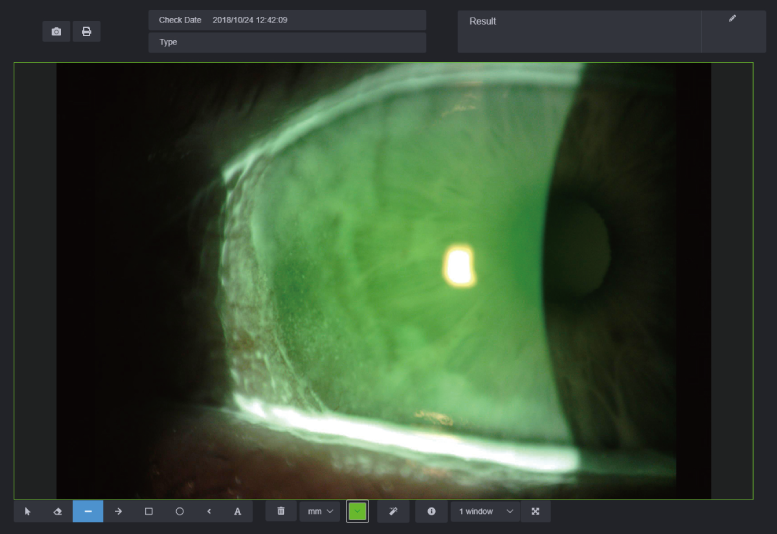

Red Eyes Analysis and Keratopathy Exposure

With a built-in yellow filter, doctors can accurately analyze eye surface damage and inflammation images.

Slit Lamp Microscope S290  官网版本-26.png
Slit Lamp Microscope S290  官网版本-27.png

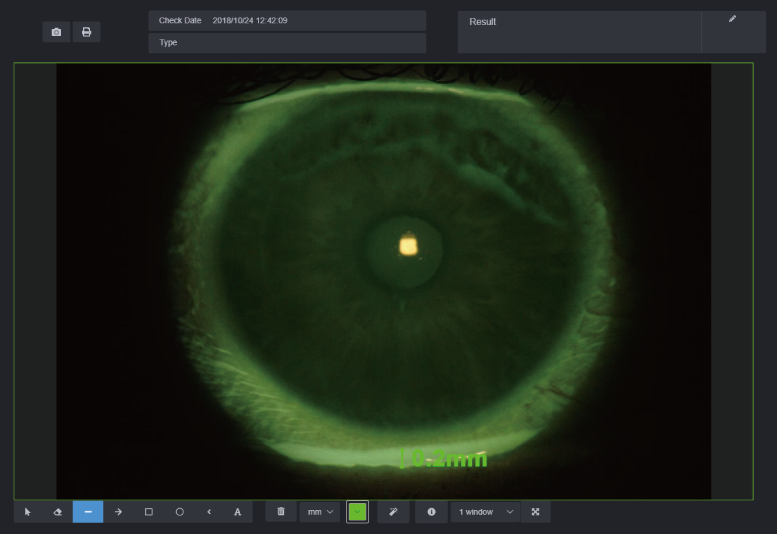

Tear Meniscus Height

Doctors can obtain tear meniscus height by using measuring function in the Mediview software, and effectively evaluate tear
meniscus height.

Optional Accessories

Slit Lamp Microscope S290  官网版本-28.png

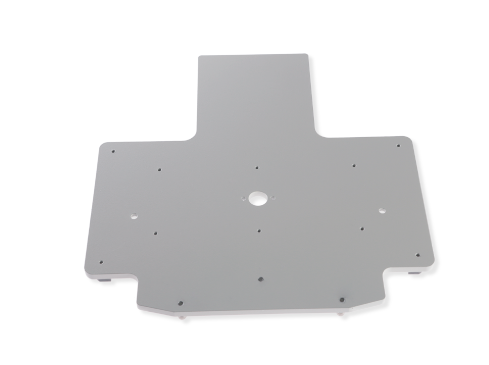

Metal Plate (work with refraction units)

When placing a slit lamp on a refraction unit, it is suggested to use MediWorks metal plate for easier installation. With smart size design, it is easy to move the whole suite of slit lamp from one refraction unit to another without drilling any screw holes on the table tops.

Slit Lamp Microscope S290  官网版本-29.png

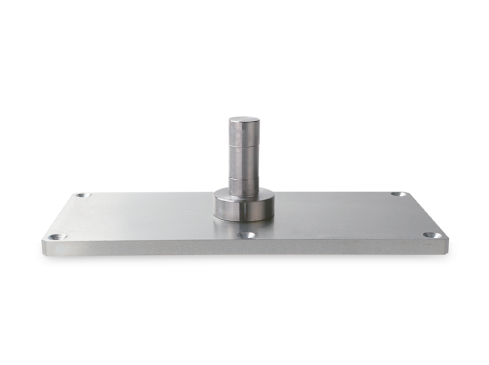

Instrument Stand Pin (work with US style instrument stand)

This instrument stand pin is specially designed to install MediWorks slit lamps onto US style instrument stands. The diameter of the joint pin is 19mm, compatible with most of the instrument stands. With this pin the slit lamp table top can be installed to the lower slit lamp arm of instrument stand.

Slit Lamp Microscope S290  官网版本-30.png

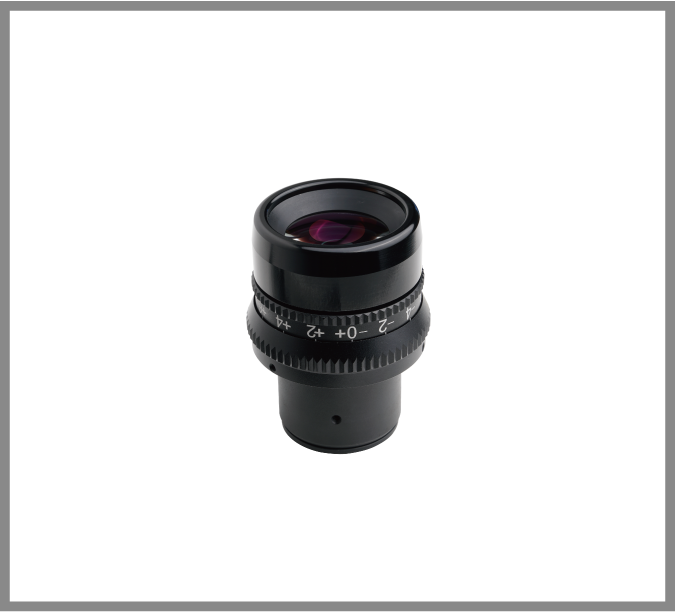

Measuring Eyepiece

Equipped with a reticle inside, the eyepiece has a measuring function which can facilitate doctors to measure the pathologies conveniently and give more accurate diagnosis.

Slit Lamp Microscope S290  官网版本-32.png
Slit Lamp Microscope S290  官网版本-31.png

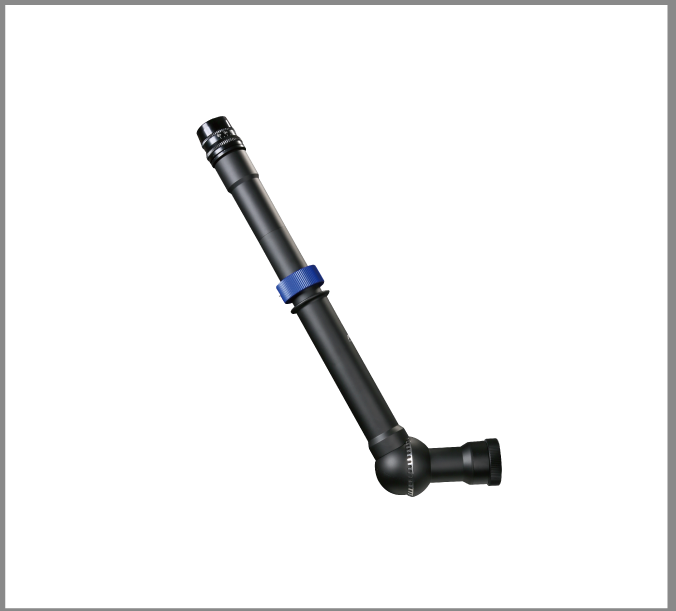

Observation Tube

Connected through beam splitter, the observation tube enable another medical staff to observe the patient's eye condition from the slit lamp. It is good for teaching education purpose.

Specifications

MicroscopeS290
Microscope Type Galilean Type
Magnification ChangeRevolving drum 5 steps
Total Magnification6.3 x, 10 x, 16 x, 25 x, 40 x
Eyepieces12.5 x
Angle between Eyepieces10°
Pupillary Adjustment52 mm ~ 80 mm
Diopter Adjustment- 8 D ~ + 8 D
Field of ViewØ36.2 mm, Ø22.3 mm, Ø14 mm, Ø8.9 mm, Ø5.7 mm

Slit Illumination
Slit Width0 ~ 14 mm continuous (slit becomes a circle at 14 mm)
Slit Length1 ~ 14 mm continuous
Aperture DiametersØ14 mm, Ø8 mm, Ø3.5 mm, Ø0.2 mm
Slit Angle0° ~ 180°
FiltersHeat-absorbing filter, Red-free filter, Cobalt blue filter, Built-in yellow filter
LampLED
Luminance≥ 150 klx

Power Supply
Input Voltage~100 V ~ 240 V
Input Frequency50 Hz / 60 Hz
Rated Current1.2 A
Output VoltageLED 3 V,Fixation 15 V

Packaging
Dimension740 mm x 450 mm x 530 mm (L/W/H)
Gross weight22 kg
Net weight16 kg

System Specifications
Image Sensor12M Pixels
Photo Resolution4056 x 3040
FormatJPEG
Video Resolution2592 x 1944
Frame of Video30 fps
Video FormatsMP4 H.264
Exposure ModeAutomatic exposure
Transmission InterfaceUSB

Computer Specifications
PC configurationi5 - 10500T 8GB memory 256GB SSD + 1TB storage
Display1920 x 1080 23.8 inch
PC systemWindows 10
