Ophthalmic / Vision Chart C901

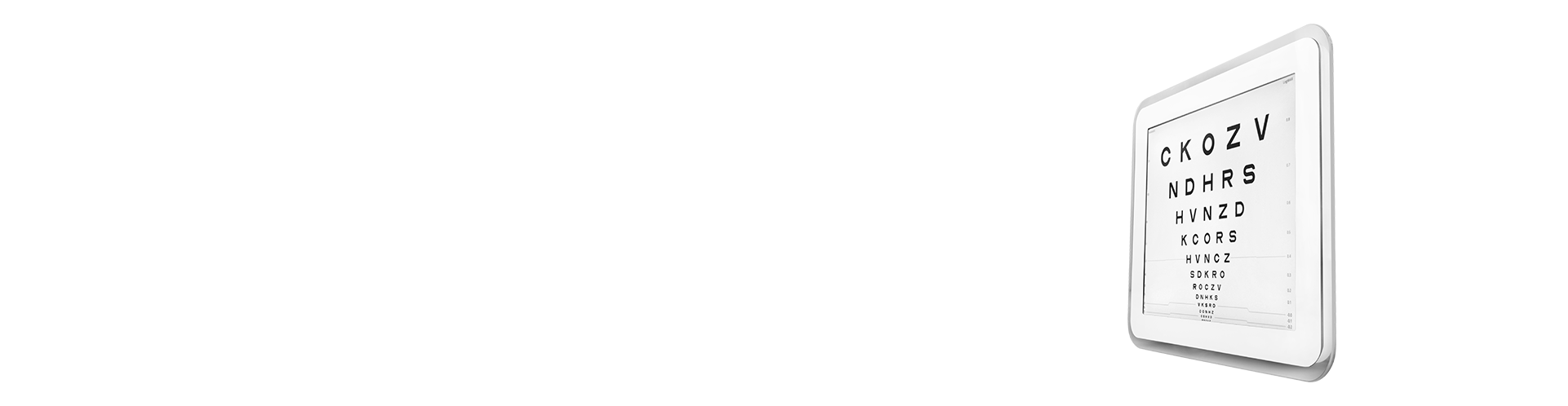

Vision Chart C901

High quality screens provide a consistent performance Multiple visual targets meet different test requirement

Multifunctional Visual Chart C901


The visual acuity machine C901, which is necessary for ophthalmic diagnosis, is mainly used to evaluate the visual ability of patients. It's based on having patients view charts of different types, colors, or patterns. Whether it is to evaluate the eye condition of new patients or postoperative recovery, a visual acuity test machine is one of the indispensable diagnostic equipment. MediWorks vision chart C901 adopts a 17-inch LED backlight screen and weighs only 3.6kg, which can be installed on the desktop or wall. At the same time, it can support remote operation and various test forms, including video playback, image browsing, image playback, etc.

What’s new?

◉ LED Screen -- Visual acuity machine C901 has 17 inch LED backlight screen.

◉ New CNT test -- It is more scientific, effective, and directive. CNT curve will be formed and displayed on the screen of vision acuity machine when the test is finished.

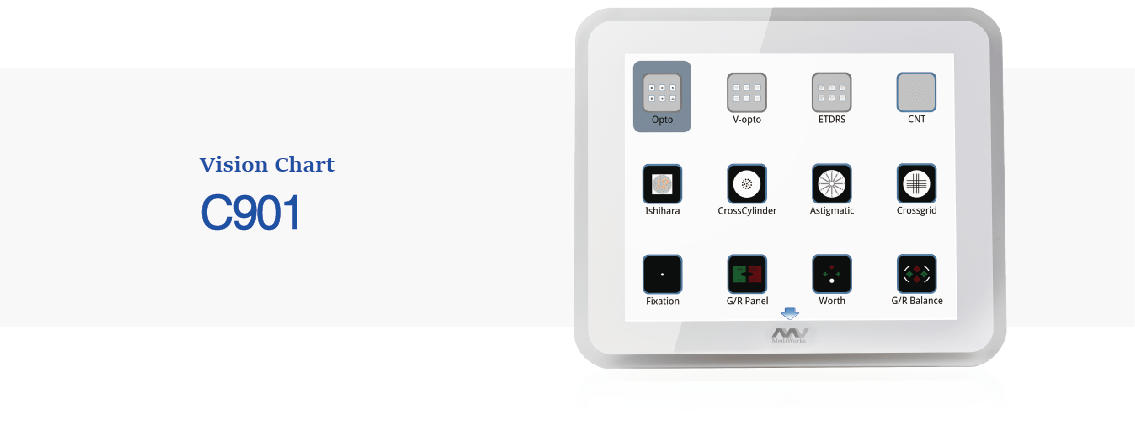

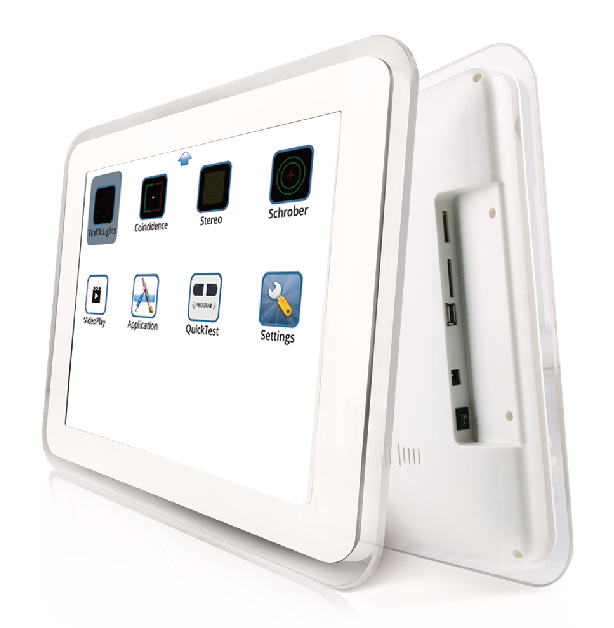

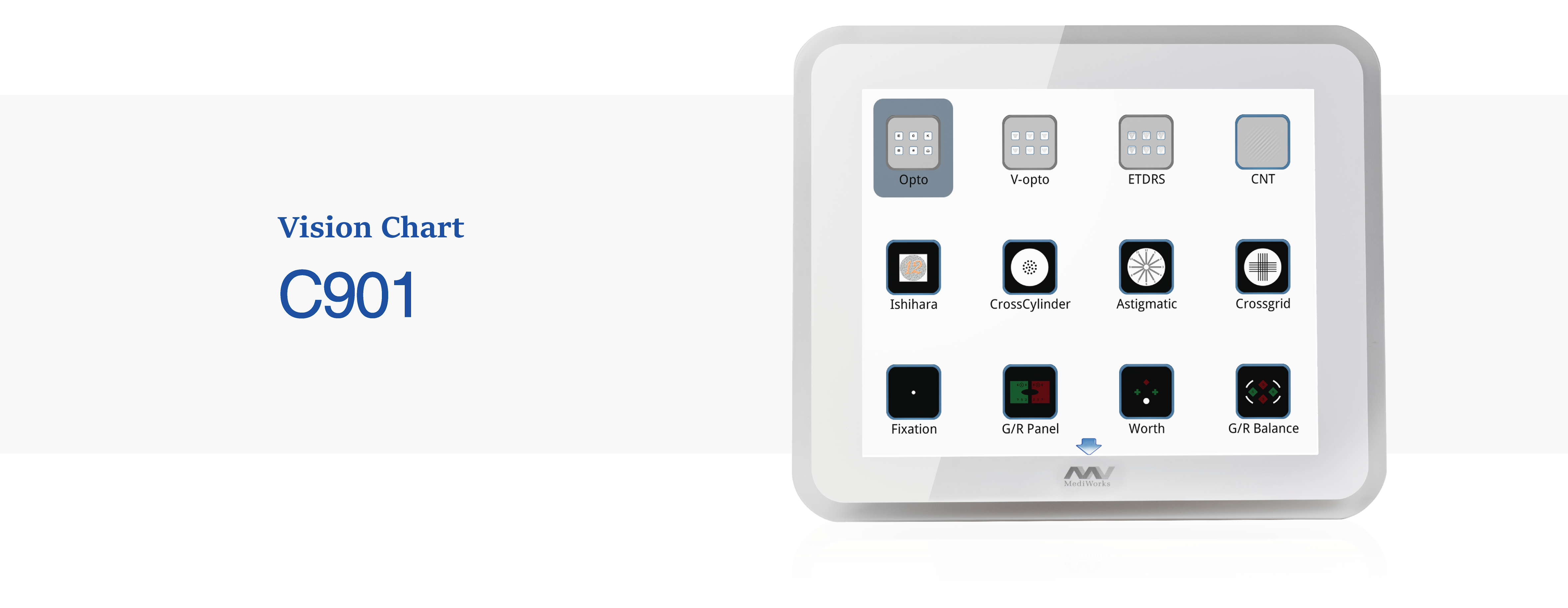

◉ Better user experience--- All tests icons are listed on home interface.

◉ Quick test list -- Pick ten or fewer frequently used tests to establish your quick test list on vision chart C901.

◉ V style optotype arrangement--- Avoid optotpyes congested on the screen.

◉ Excellent programming give full play to the features of CPU.



Mediworks vision chart C901 advanced parameter setting experience

The built-in software of C901 is developed on Linux platform. All the optotypes and charts are vector graph.

How to change the parameters on vision acuity machine:

What you do: Press SET button on remote controller.

What vision chart C901 does: Redraw the optotypes and charts on based on defined parameters.

◉Three languages in vision acuity machine: Chinese,English and Russian.

◉Working distance: Vision chart C901 can be flexibly adjusted according to user’s needs.

◉Size of image: It can be changed freely according to the working distance.

◉Visual unit: It can be set according to the preference of different operators.

◉Red & Green value: It can be set real time according to the clinical condition.

◉Mirrored room: Include reversible optotypes and charts.

◉Vision chart C901 provides screen saver and standby function.

◉Gamma Calibration function brings the professional contrast sensitivity measurement.

◉Software upgrade provided for free during the lifetime of vision acuity machine C901.

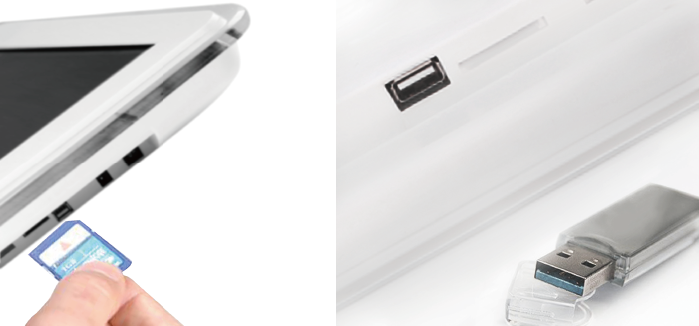

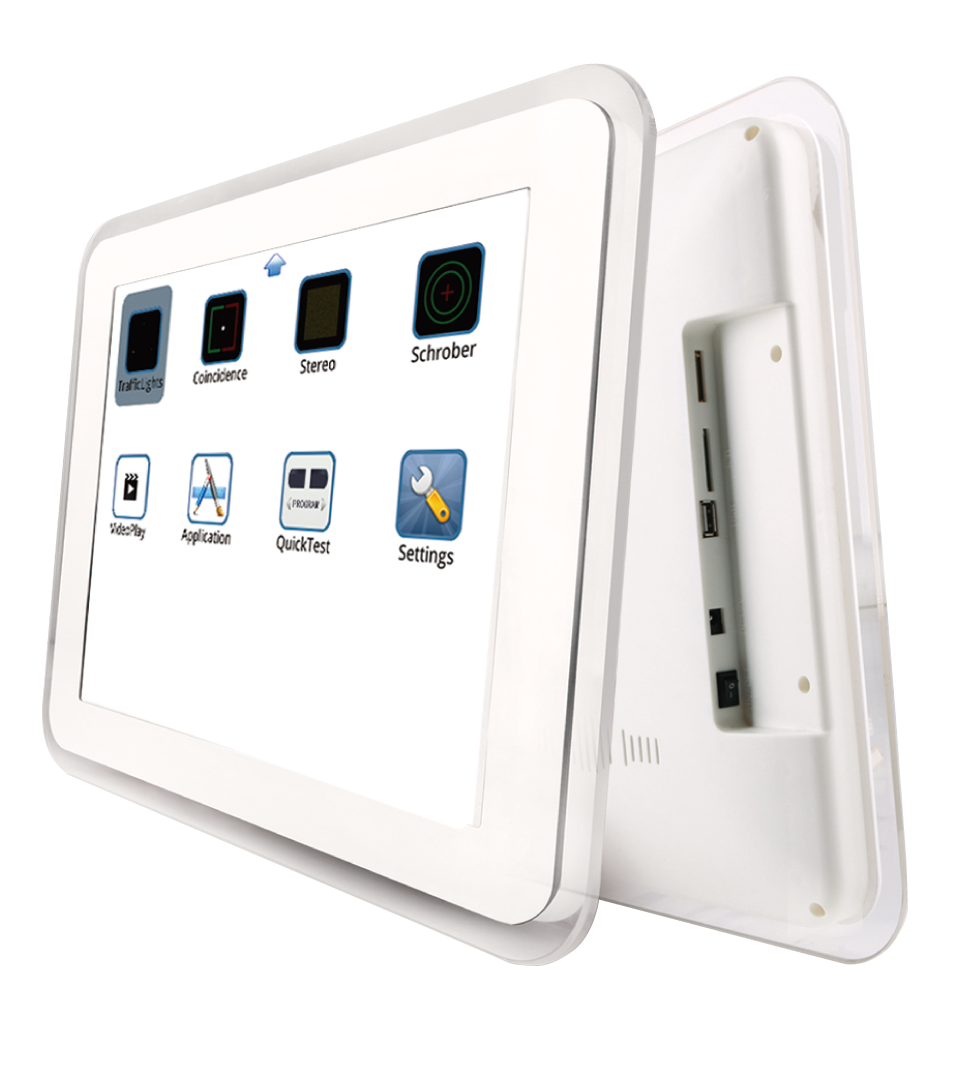

Two external ports -- With two ports on vision chart C901 provided for SD Card and USB flash disk connection, the user can run the automatic update procedure. Can play the video (AVI, MKV, and MP4 format.)

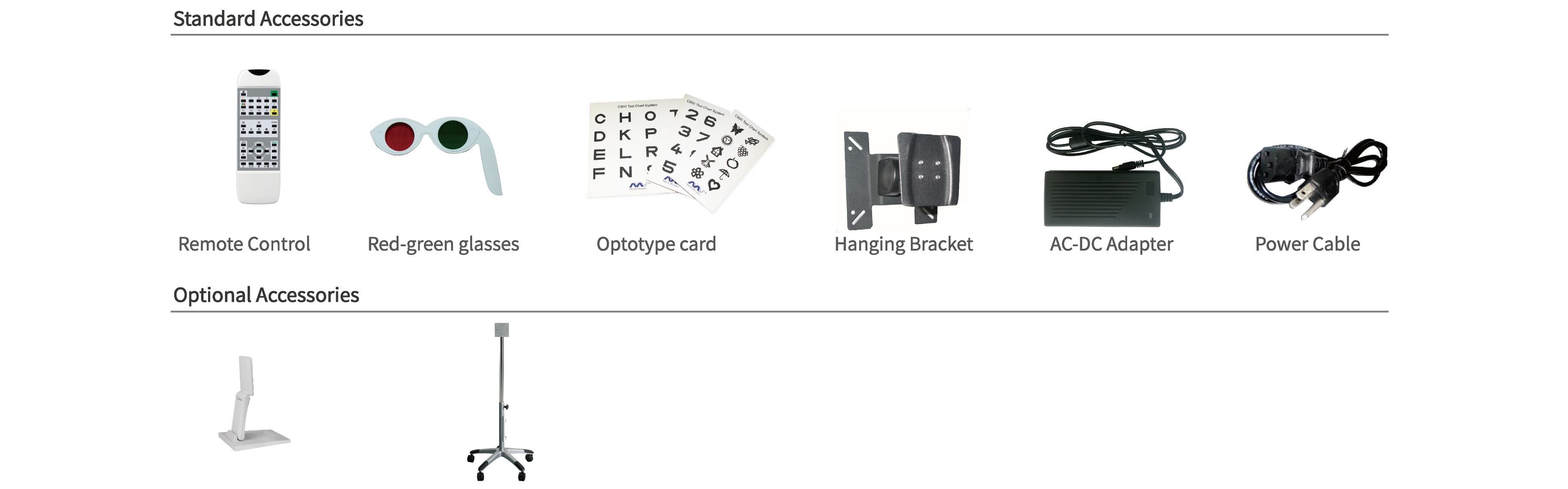

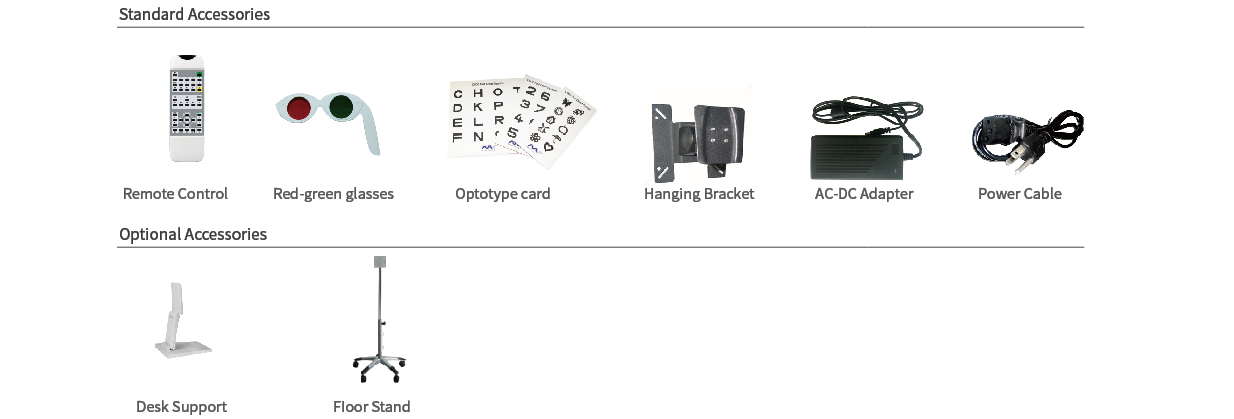

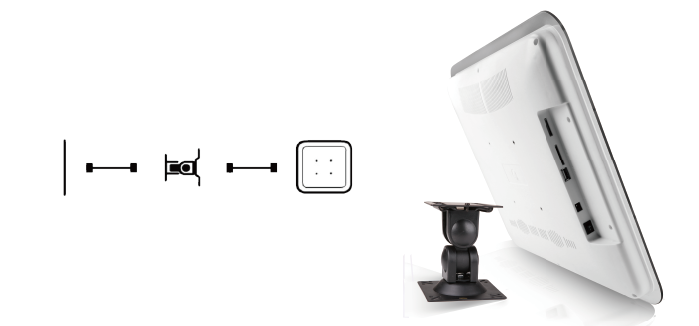

Three installation methods -- Desk support, Floor stand and wall bracket. With the wall bracket as standard, vision chart C901 can be installed on the wall.

Specification

Screen
Type17 inch XGA Panel with LED backlit screen
Resolution1280 x 1024 pixels
Brightness80~320cd/m2

Charts

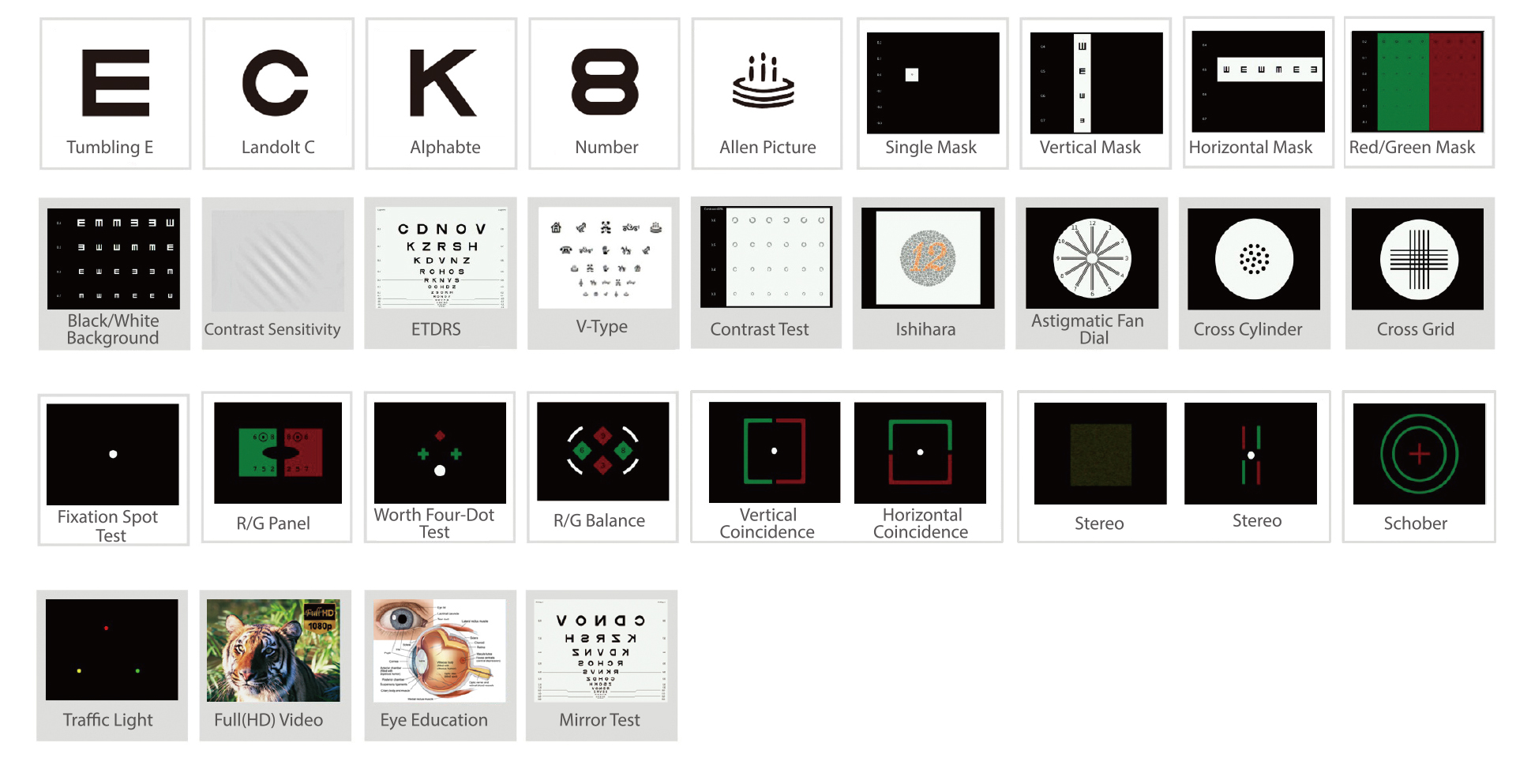

OptotypesE, C, Alphabet, Numbers, Children, Allen pictures (Normal and Uncrowded type)
Mask typeChange of the background, Single mask, Horizontal mask, Vertical mask, Red/Green mask, Contrast
Special ChartETDRS,Contrast Sensitivity Test, Contrast Test, Ishihara,Cross Cylinder,Astigmatic Fan Dial,Cross Grid,Fixation Spot Test, Stereo Test, Red/Green Panel, Worth Four-Dot Test, Red/Green Balance,Traffic Light,Horizontal Coincidences, Vertical Coincidences,Schober
Low vision chart (E,C,Alphabet,Numbers,Children,Allen pictures) , Uncrowded Optotypes

Other Functions
Video Playing,Image browsing,Randomization Optotypes Playing,Mirror function,Screen Save function,Standby function

Visus Unit
Decimal0.05~2.0
Snellen(ft)20/400~20/10
Snellen(m)6/120~6/3
LogMAR-0.3~1.3
5-Grade3.7~5.3

Working Distance
2m~7m (in steps of 0.1m) 6ft-24ft (in steps of 0.5ft)
Low vision chart 0.4m~1.5m, in step of 0.1m

Power Supply
Input100-240V AC,60/50Hz
Consumption20Watt (max)

Remote Control
IR Remote, 2*AA Batteries

Packaging
Dimension443mm x 371mm x 40mm (L/W/H)
Net Weight3.6Kg
