Dental / Dental Surgical Microscope SM620

Dental Surgical Microscope SM620

Digital dental microscope treatment Multiple filter modes

Telemedical Modern Dental Microscope SM620

MediWorks’s dental microscope SM620 allows you to see the details and structure of the patients' teeth an to improve the quality of dental surgery. The zoom and multifunction knobs of the dental microscope can enhance the visualization of anatomical details and structures. The dental surgery microscope is an indispensable instrument for dental surgery. MediWorks can provide dentists with affordable dental microscope solutions.

Modern Micro Treatment


Advantages of Dental Surgical Microscope

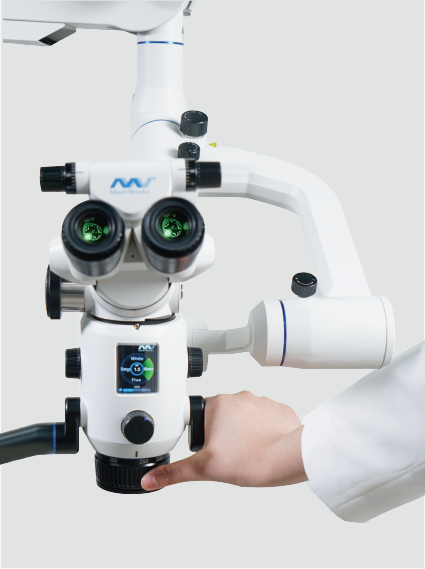

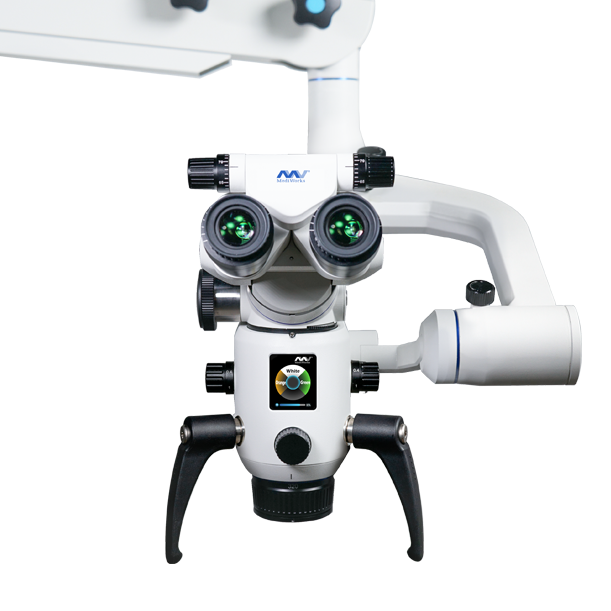

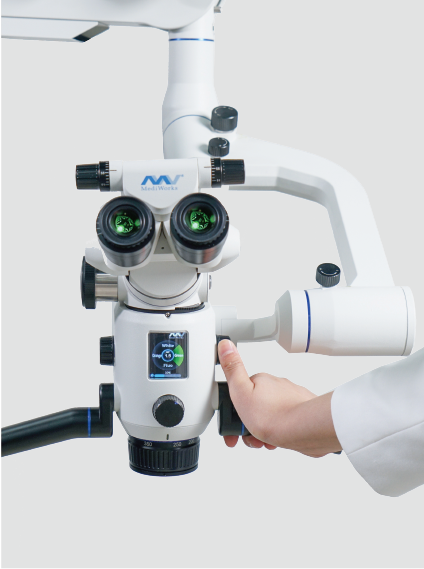

Single finger control

Without leaving the handle, you can reach out the knob and objective lens of the dental surgical microscope with one single finger to achieve minimal control.

SM620 Dental Surgical Microscope 20230614 官网切图-18.png
SM620 Dental Surgical Microscope 20230614 官网切图-19.png
SM620 Dental Surgical Microscope 20230614 官网切图-20.png

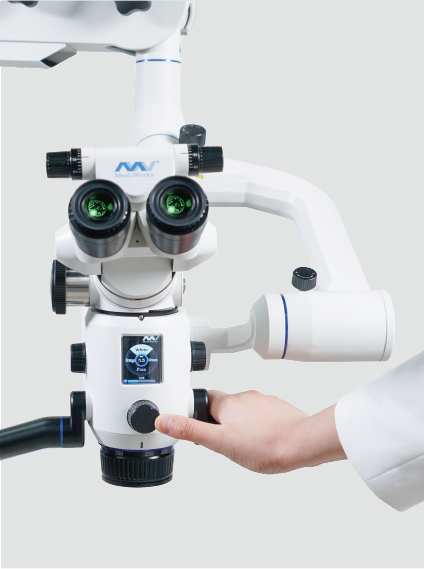

Multi-functional knob

The light source modes in the SM620 multi-function knob include orange filter, white light source, green filter, and fluorescence light source.

SM620 Dental Surgical Microscope 20230614 官网切图-14.png

White light source

Using the best medical LED light source with high CRL, excellent color restoration, and uniformity of lighting spot.

SM620 Dental Surgical Microscope 20230614 官网切图-15.png

Orange filter

Used for material filling, can prevent resin material curing too fast.

SM620 Dental Surgical Microscope 20230614 官网切图-16.png

Green filter

Used for observing the small vessels and bleeding points in the blood environment.

SM620 Dental Surgical Microscope 20230614 官网切图-17.png

Fluorescence light source

The fluorescence mode supports dentists to distinguish decay. Clear visual differentiation helps you confirm the affected area.

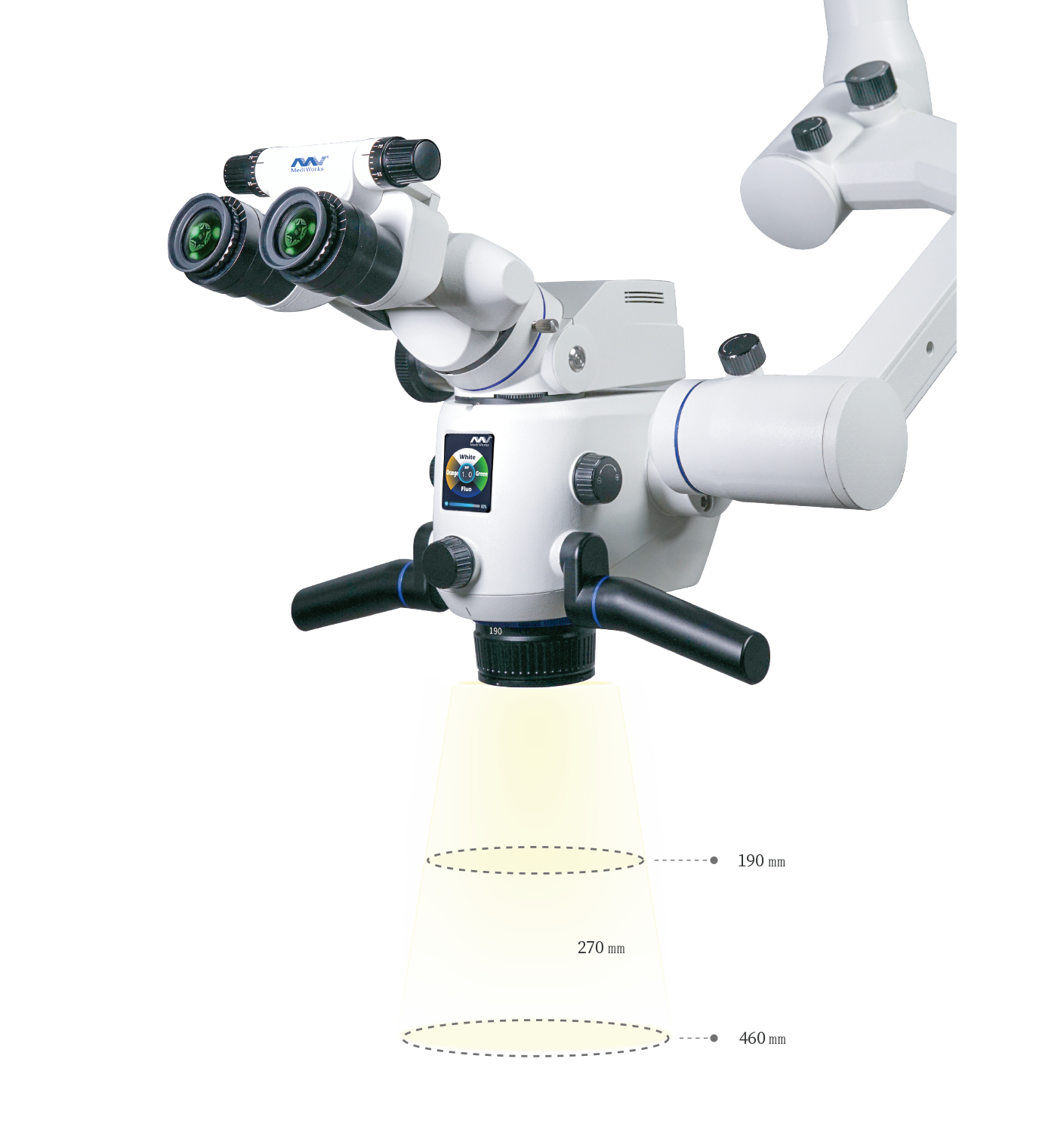

Variofocus Objective

The variable working distance of dental microscope SM620 can reach 190 mm to 460 mm

Continuous zoom system

MediWorks’s dental surgical microscope can adjust the magnification continuously without interruption, effectively reducing the discomfort caused by the switching of the field of view, allowing the doctor to focus more on the treatment.
Continuous magnification system of 0.4 x to 2.4 x. Continuously view at the highest magnification without over or under-sizing the viewing field.

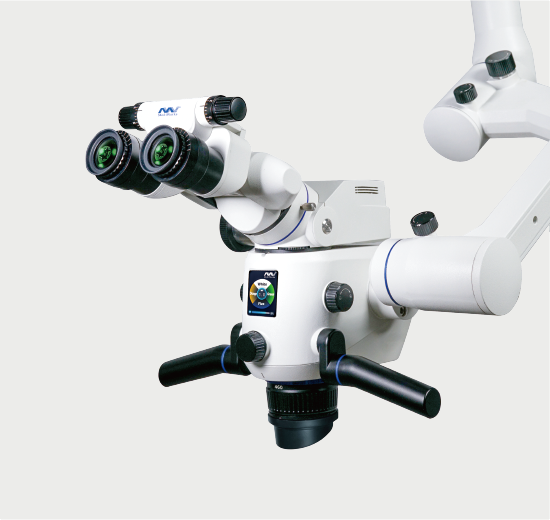

Information Display

SM620 can visually display the light source mode to feedback the zoom factor in real time, display the brightness adjustment status, and create a better surgical treatment environment.

Cutting-edge Optical Lens

Advanced optical lens with Apochromatic Design (APO), able to remove color difference,improve articulation index and increase the depth of field.

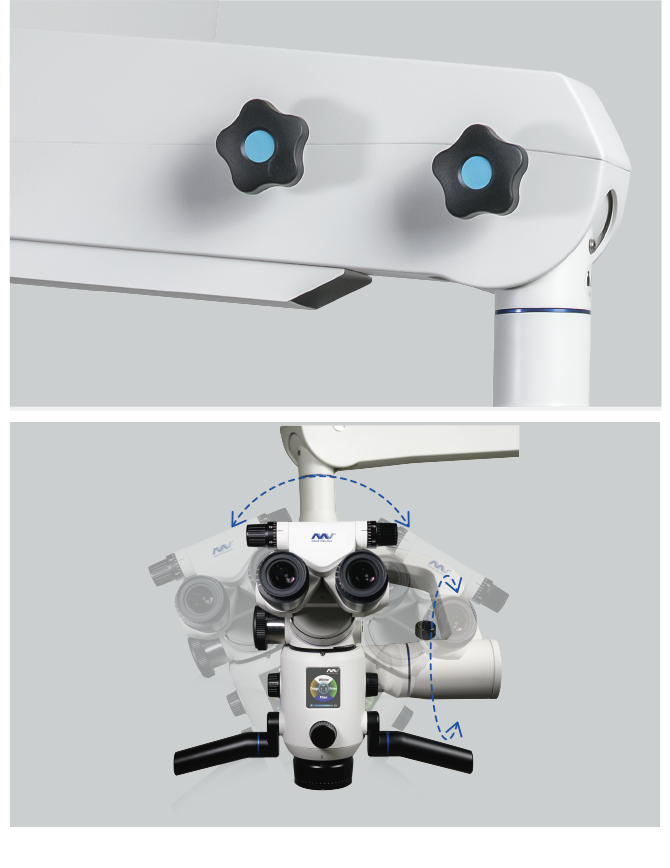

Superb Balance Arm

By adjusting the balance of the double joints, the main mirror of the dental surgical microscope is always in a balanced state and can be hovered at any position, providing a smooth and comfortable operating experience for the doctor.

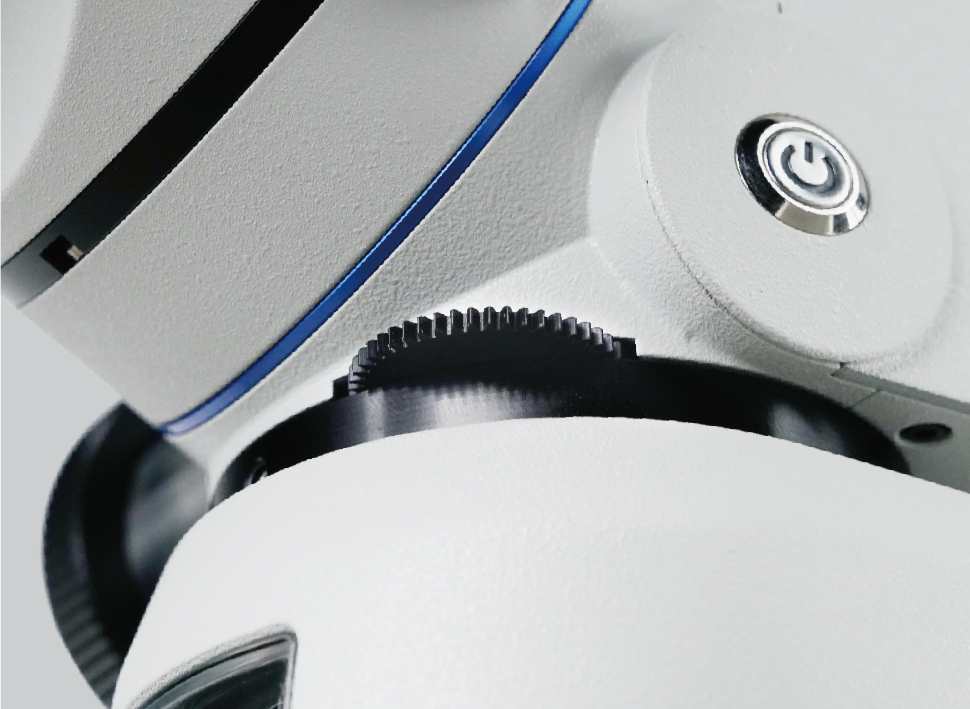

Ergonomic Design

The tiltable handle of the dental microscope can be ergonomically designed to bring a more comfortable operation to the doctor.

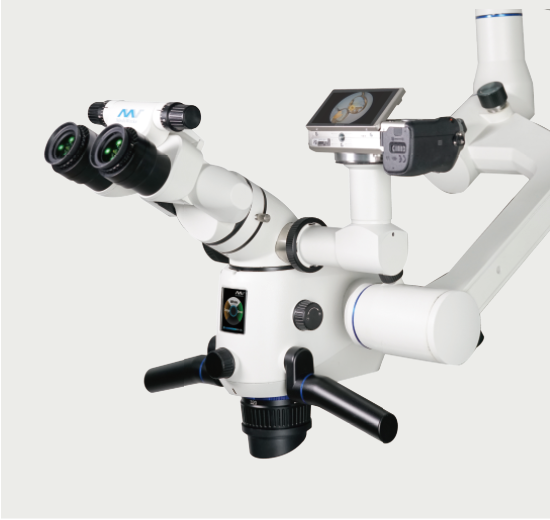

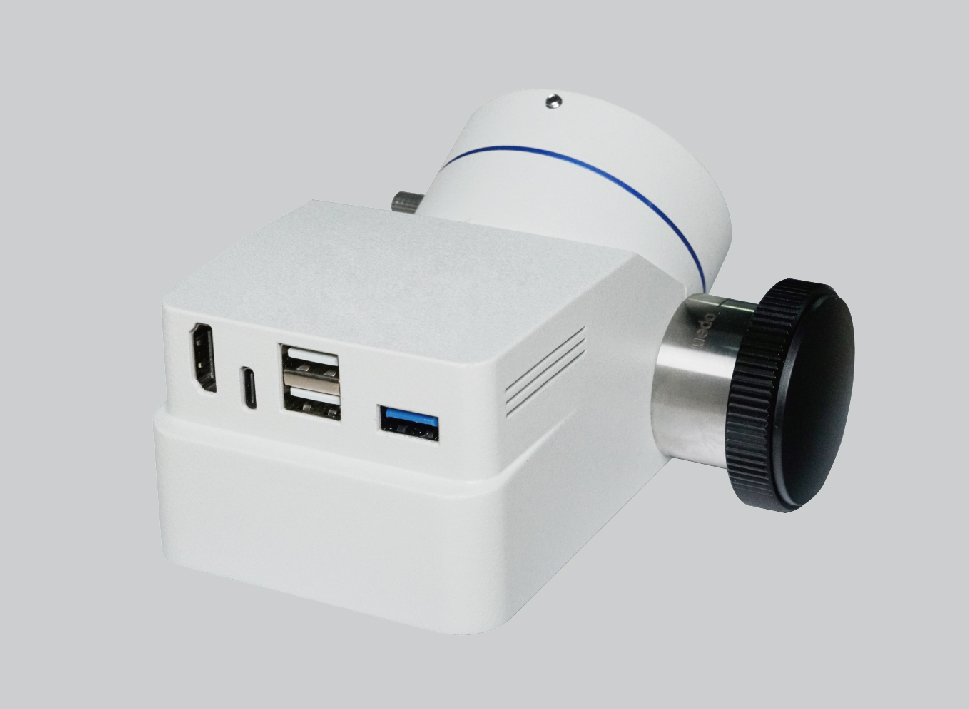

5 in 1 Digital Module

Integrate 30°extender, beam splitter, rotation ring, 4 K camera and iris diaphragm, not only improves the optical performance, but also reduces the weight of external accessories. Internal 4 K camera with lower noise, higher sensitivity and resolution. The iris diaphragm is able to control the depth of field.

SM620 Dental Surgical Microscope 20230614 官网切图-12.jpg

SM620 Dental Surgical Microscope 20230614 官网切图-13.jpg

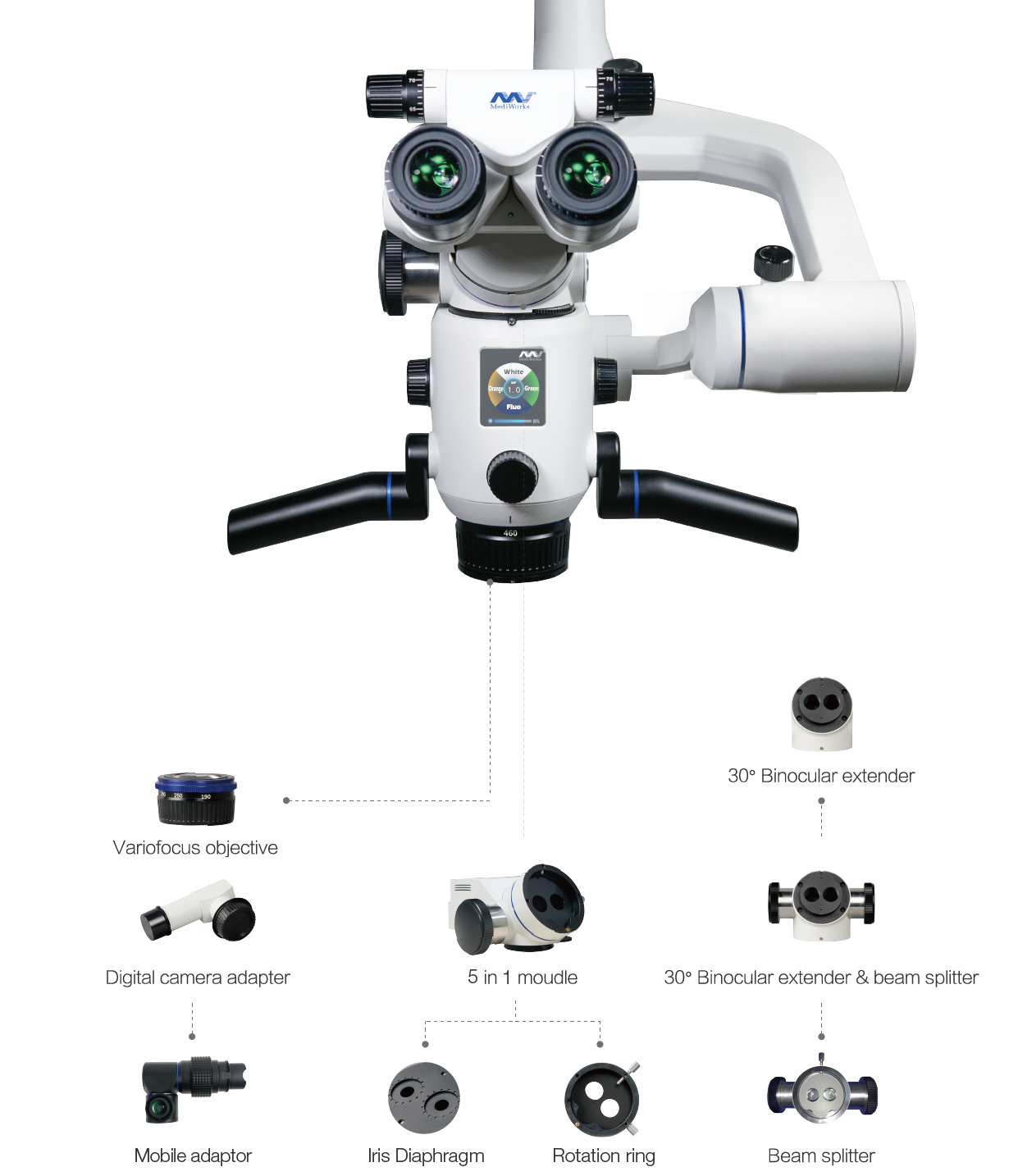

Dental Microscope Parts

Except for the 5 in 1 module of SM620, any kinds of accessories are offered, either, and an upgrade of medical dental microscope would be achieved. Various objectives, Binocular extender, digital camera adapter, 5 in 1 module, Binocular extender & beam splinter, CCD adapter, Rotation Ring, Digital camera interface, 3D mobile phone interface are optional.

SM620 Dental Surgical Microscope 20230614 官网切图-06.png

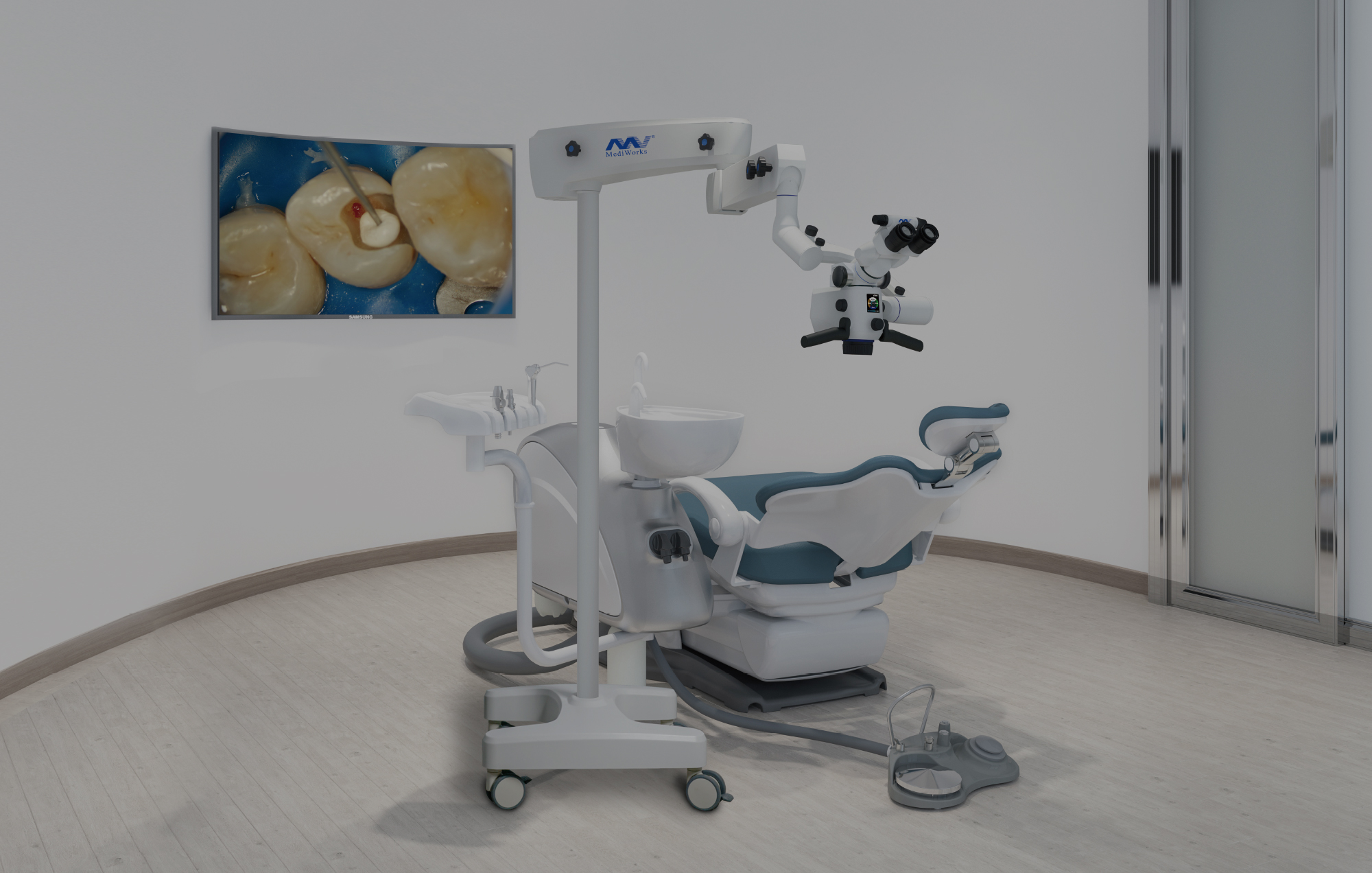

Suspension System Options

We can provide corresponding support for the installation of dental surgical microscopes in different settings. The installation methods supported by the dental surgical microscope SM620 are offered in floor type, wall type, ceiling type and desktop.

SM620 Dental Surgical Microscope 20230614 官网切图-21.png


Dental surgical microscopeClassicProPro+
Zooming-magnification-changer,0.4 x - 2.4 x
180° tiltable binocular with PD adjustment
12.5 x wide-field eyepieces, diopter adjustable of eyepiece ± 7 D
IPD 52 mm - 75 mm
FOV 65 mm - 10 mm
Multi-Function Knob
Information Display
Illumination Intensity >70000 lx(F250)
Built-in LED

Varifocal 270, F=190 mm - 460 mm
Dust Cap for Objective Lens

Orange filter & Green filter
Fluorescence Modeopt.opt.opt.
APO Design

30° Binocular Extender with Built-in Beam Splitter
5 in 1 Module: Binocular Extender & Beam Splitter & Rotation Ring & 4 K integrated Camera(Foot Switch associated) & Iris Diaphragm
Digital camera adaptor (Optional: Sony, Canon or Nikon)
360° Cell Phone Adaptoropt.opt.
Built-in Battery and HDMI Cable (Optional camera type: Sony, Canon or Nikon)

Mounting SystemClassicProPro+
Floor standing, Ceiling Mount, Wall Mount

25° Binocular Rotation Ring
Foot switch (Optional camera type: Sony, Canon or Nikon)
Iris Diaphragm (Increase the depth of field)opt.opt.

Balance ArmClassicProPro+
Balance arm
Superb balance arm
