Dental Surgical Microscope

SM623D

The dental surgical microscope SM623D is a powerful auxiliary equipment that provides magnification and illumination for doctors in the process of dental operation.

Home > Products > Dental > Surgical Microscope > SM623D Dental Surgical Microscope

Dental Surgical Microscope

SM623D

The dental surgical microscope SM623D is a powerful auxiliary equipment that provides magnification and illumination for doctors in the process of dental operation. Our dental operating microscope adopts high-quality optical lenses, which can provide doctors with ultra-clear image quality and greatly reduce the fatigue of the eyes, and has an ergonomic design, which can effectively improve the comfort of doctors at work. Fine dental microscope treatment mode can accurately see the deep problems of teeth, so as to better treat.

Products Functions

  • Varifocus Objective

  • Manual Continuous Zoom System

  • LED Light System

  • Multifunctional Knob

  • Cutting-edge Optical Lens

  • Zoom Aperture Adjustment

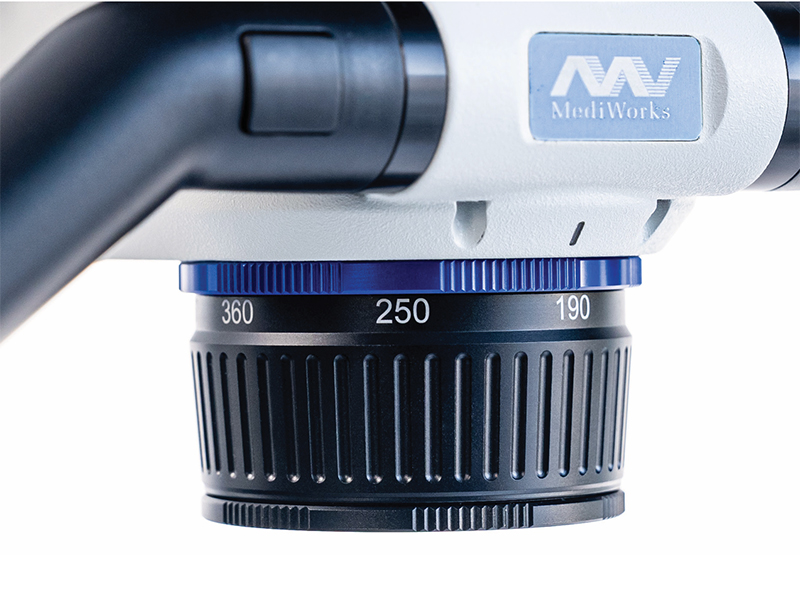

Varifocus Objective

Varifocus Objective

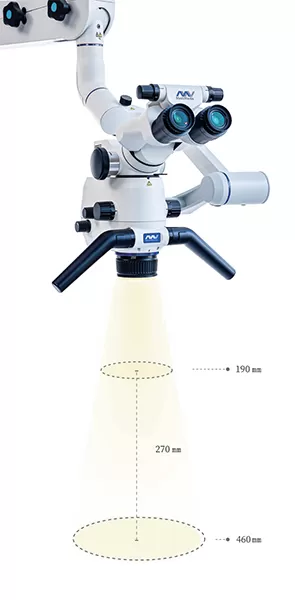

The variable working distance of dental operating microscope SM623D can reach 190 to 460mm.

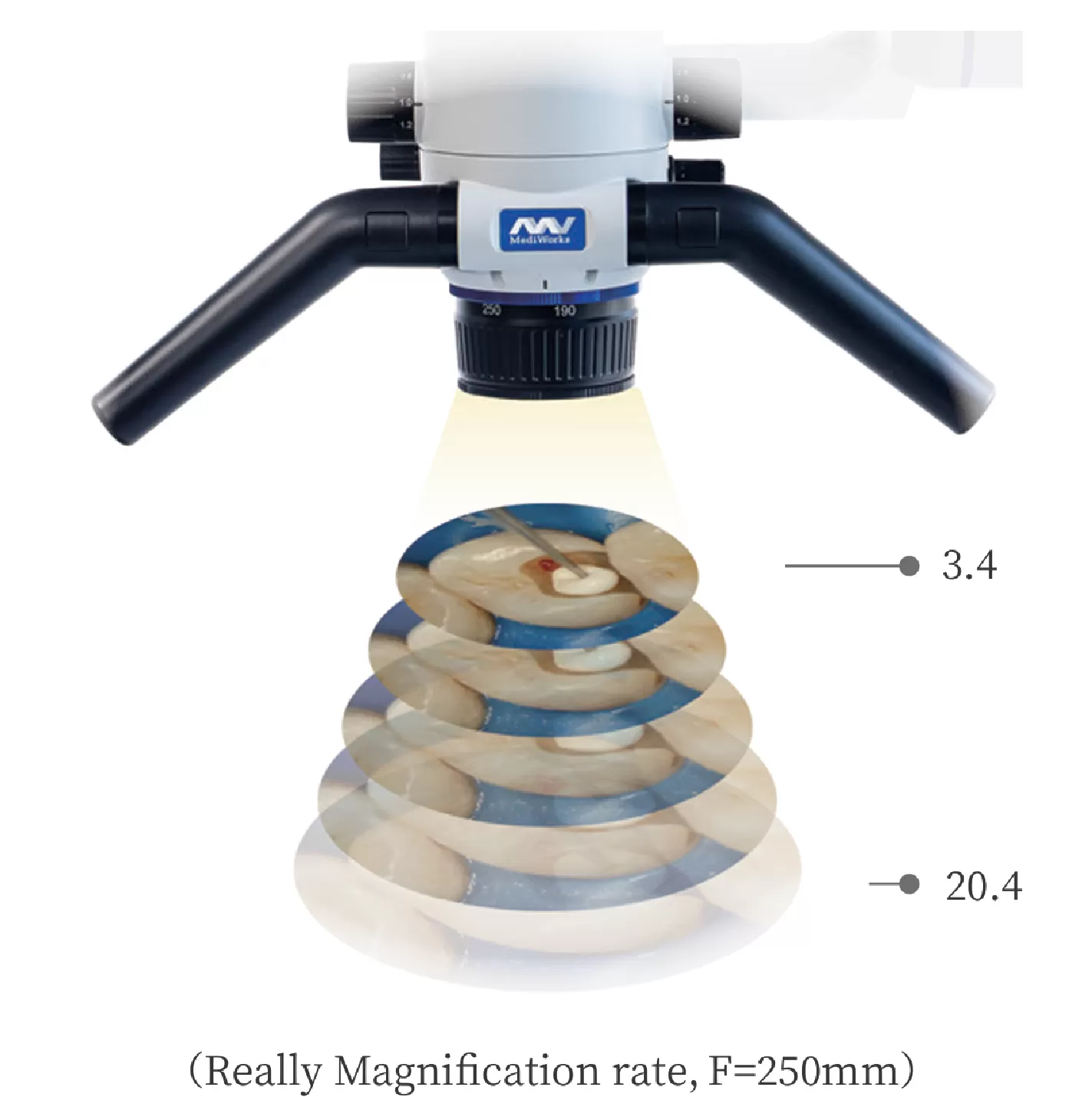

Manual Continuous Zoom System

Manual Continuous Zoom System

Compared to traditional mechanical (Really Magnification rate,F=mm)magnification, the continuous magnification system allows for a better experience with uninterrupted adjustment of magnification during the procedure.

LED Light System

LED Light System

LED Light System

The illuminance on the object surface is no less than 100000 lux (Lx).

This design ensures high brightness, energy efficiency, and convenience during operation.

Multifunctional Knob

Multifunctional Knob

Green Filter

Green Filter

The light source modes in the SM623D multi-function knob include orange filter, white light source, and green filter. Using for observing the small vessels and bleeding points in the blood environment.

Orange Filter

Orange Filter

Used for material filling, can prevent resin material curing too fast.

White Light Source

White Light Source

Using the best medical LED light source with high CRL, excellent color restoration, and uniformity of lighting spot.

Cutting-edge Optical Lens

Cutting-edge Optical Lens

Importing optical leans with apochromatic Design (APO), able to remove the color difference, improve articulation index and increase the depth of field.


Cutting-edge Optical Lens

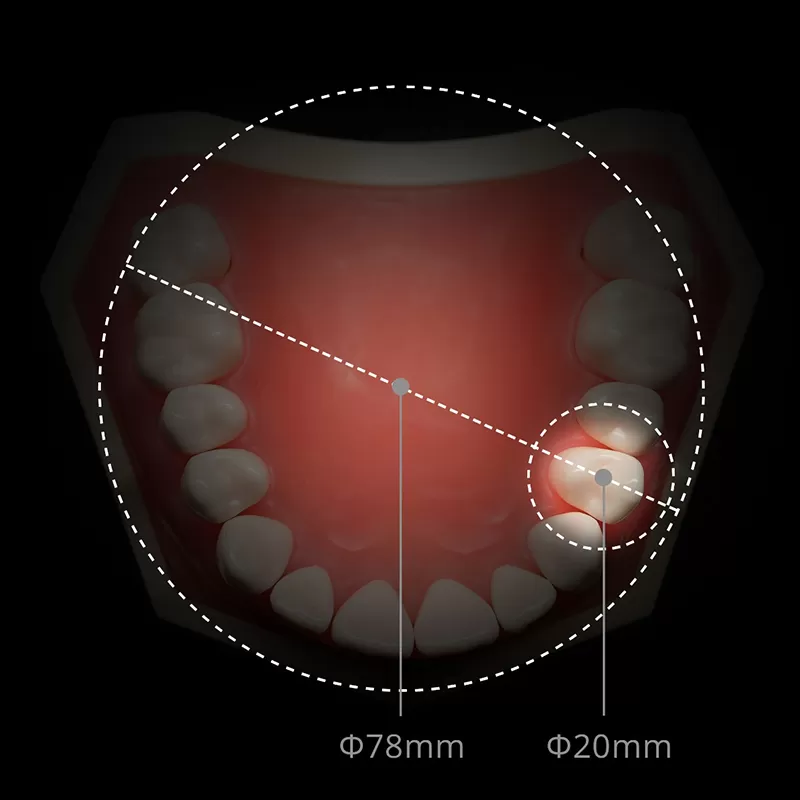

Zoom Aperture Adjustment

Zoom Aperture Adjustment

Meet the aperture size requirements of different surgical scenes. At the same time, we can also protect the patient’ s eyes when working at a large working distance.
