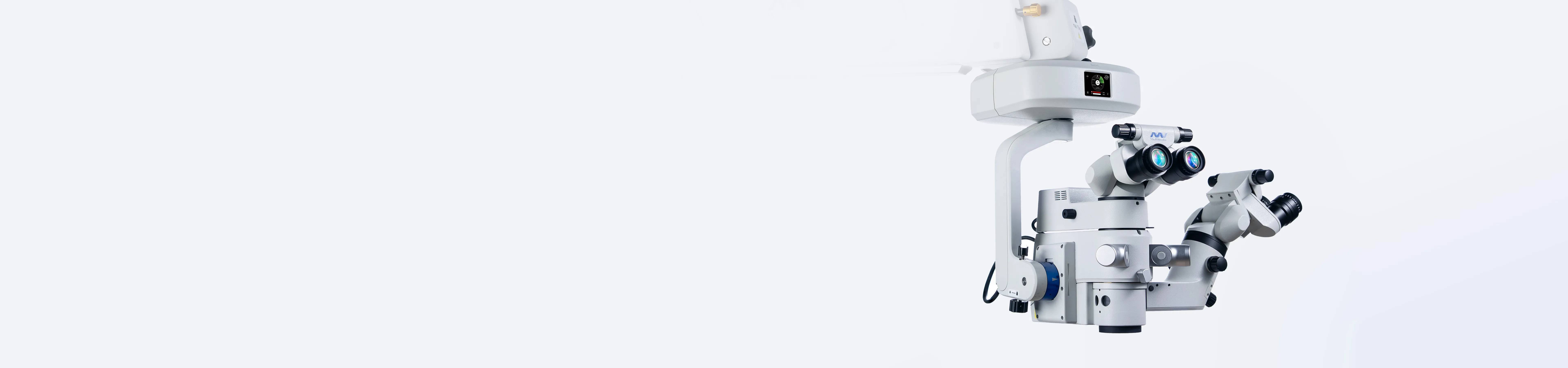

Elanus M Ophthalmic Microscope

Versatile system for all kinds of ophthalmic surgeries

Cutting-edge optic design for better depth of field
4K high resolution video & Case management system could help you better manage and plan surgical files as well as teaching analysis
Personalized Customization allows you to operate more freely without a longer learning curve

Introducing Elanus M

Products Functions

  • Cutting-edge optic & illumination design

  • Independent assistant microscope

  • Motorized ZOOM system & Wireless Foot control

  • Personalized Customization

  • Case Management System

  • Eyepiece Projection

Cutting-edge optic & illumination design

Design

The achromatic design not only corrects the chromatic aberration of red, green and blue light, but also corrects the spherical aberration of red and blue light. Thanks to the perfect correction of various aberrations, the microscope has a high resolution and better image quality.

Bright and Stable Red Reflex

Red reflex brightness adjustment is independent of stereo illumination adjustment. The red reflex produced by the uniquely designed multi-directional stereoscopic coaxial illumination allows the surgeon to clearly see the boundaries of the capsule and the fine structure of the lens even in the weak light, thus easily performing capsulorhexis, stable aspiration of the residual cortex and steady polishing of the posterior capsule. The multi-directional red reflex easily overcomes problems such as insufficient illumination due to misalignment of the eye during surgery.

Independent assistant microscope

Rotatable coaxial independent assistant microscope

Using the same optical path as the objective lens, the DOF is synchronized with the objective lens, and the focus can be fine-tuned separately to maintain clarity; Eyepiece magnification up to 26.3X provides a bright, wide and clear field of view. The focus of the assistant microscope is separated from that of the primary microscope and can be adjusted independently for the best view. In cases where frequent switching of surgical positions is required, such as temporal incision cataract surgery, simply rotate the assistant microscope to the desired side, making it easy to move and eliminating the risk of optical correction and hardware damage due to repeated installation/removal of the equipment, thus facilitating the surgery.

Motorized ZOOM system & Wireless Foot control

Using 1:6 motorized ZOOM system to reduce discomfort when the field of view changes. 4.2X-25.5X stepless magnification provides smooth feeling during the surgery. The foot control panel can totally control 14 Functions. Combined with personalized Settings, you can easily control the light source switch, magnification, focal length, X-Y coupling and filter switching according to your personal surgical habits. Let your eyes not leave the surgical field during the operation, making the surgical operation more convenient and smoother.

Personalized Customization

Personalized parameter Settings can create new foot control functions and distribution habits for surgeons, etc. Existing users can also make changes to the settings as needed. Upon startup, you can choose the default role mode or the existing customer Settings, which is convenient for surgeons from different departments to have a comfortable surgical experience when operating the microscope, and thus complete the corresponding different types of surgeries more smoothly.

Case Management System

Case Management System

Optimization of surgical procedures

Assist in surgical planning, intraoperative record-keeping, and postoperative summary to enhance the efficiency and quality of surgeries.

Improve the quality of surgeries

Precise recording, postoperative review, and experience sharing promote technical improvement.

Image data integration

Seamlessly connect and manage high-definition images and video clips captured by surgical microscopes.

Knowledge accumulation and sharing

Establish a searchable case database to facilitate experience summary, teaching training and scientific research analysis.

Quality improvement and traceability

Support postoperative review, complication analysis, and surgical outcome evaluation to promote continuous improvement.

Eyepiece Projection

When the current parameters of the intraoperative microscope are switched, they are projected onto one side of the eyepiece. The optimized background light source makes the layer undisturbed and more natural. The posterior surgery is automatically closed to prevent interference with the operation. The preview interface displays information such as the current magnification of the surgery.

Clinical applications

Anterior segment surgery

Phacoemulsification combined with intraocular lens implantation for cataract surgery, glaucoma surgery, ICL surgery, pterygium surgery, ocular trauma surgery.




Posterior segment surgery and anterior-posterior combined surgery

MarveLens non-contact wide-angle fundus viewing system is required) Retinal detachment surgery, vitreous hemorrhage surgery, proliferative diabetic retinopathy surgery, macular hole and anterior membrane surgery, ocular trauma surgery, endophthalmitis surgery, etc.


SM621 Ophthalmic Surgical Microscope


Observe the retina in more detail

The MarveLens non-contact wide-angle fundus viewing system provides a clear and detailed view of the retina. The convenient and secure zoom system allows the surgeon to focus more on the area of interest. Equipped with three aspheric fundus lenses, users have more options for areas and magnification.


SM621 Ophthalmic Surgical Microscope
